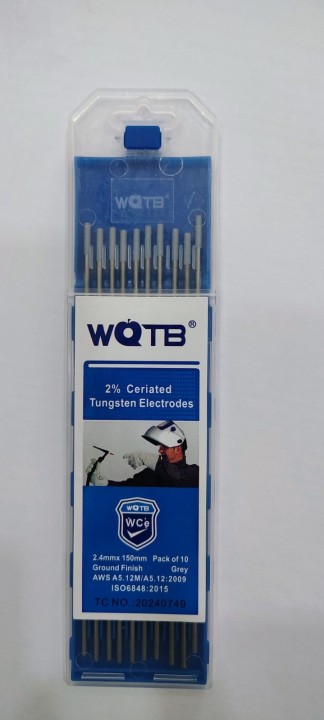

WC20 Ceriated Grey Tip
-
Click To Open Expanded View
Brand : Winner Made In China
Description : Ground Finish AWS A5.12M / A5.12:2009 ISO 6848:2015
Suitable for - 2% ceriated (EWCe-2) tungsten electrodes contain a minimum of 97.30% tungsten and 1.80 - 2.20% cerium. These electrodes perform best in DC welding at low current settings but can be used in AC or DC process applications as orbital tube ,pipe manufacturing, thin sheet metal work ,jobs where small and delicate parts are welded. Like thorium, it is best used to weld carbon and stainless steels, nickel alloys and titanium, making it an obvious replacement for 2% thoriated electrodes. Comparing with WT20, It is non-radio-active material. Electron emission ability is higher than thorium tungsten, with low arc voltage and arc stability.Positive polarity, allowable current density is higher than thorium-tungsten 5%-8%. Made in China
Suitable for - 2% ceriated (EWCe-2) tungsten electrodes contain a minimum of 97.30% tungsten and 1.80 - 2.20% cerium. These electrodes perform best in DC welding at low current settings but can be used in AC or DC process applications as orbital tube ,pipe manufacturing, thin sheet metal work ,jobs where small and delicate parts are welded. Like thorium, it is best used to weld carbon and stainless steels, nickel alloys and titanium, making it an obvious replacement for 2% thoriated electrodes. Comparing with WT20, It is non-radio-active material. Electron emission ability is higher than thorium tungsten, with low arc voltage and arc stability.Positive polarity, allowable current density is higher than thorium-tungsten 5%-8%. Made in China
- Specifications
- 1.6 MM X 150 Length 2% Ceriated
- 2.4 MM x 150 Length 2% Ceriated
- 3.0 MM x 150 Length 2% Ceriated
- 3.2 MM x 150 Length 2% Ceriated
